Description and Application

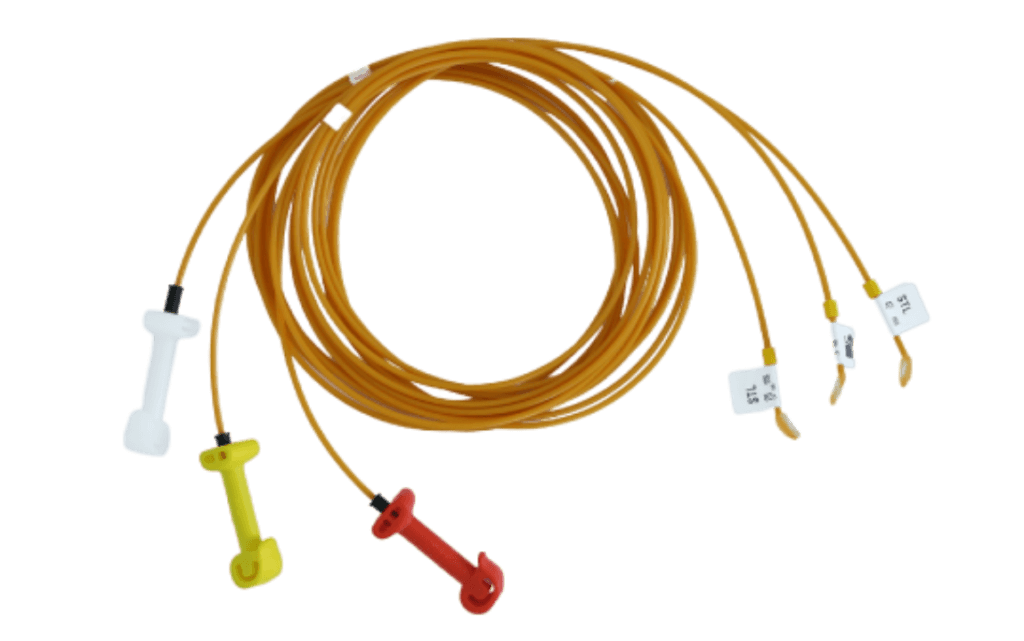

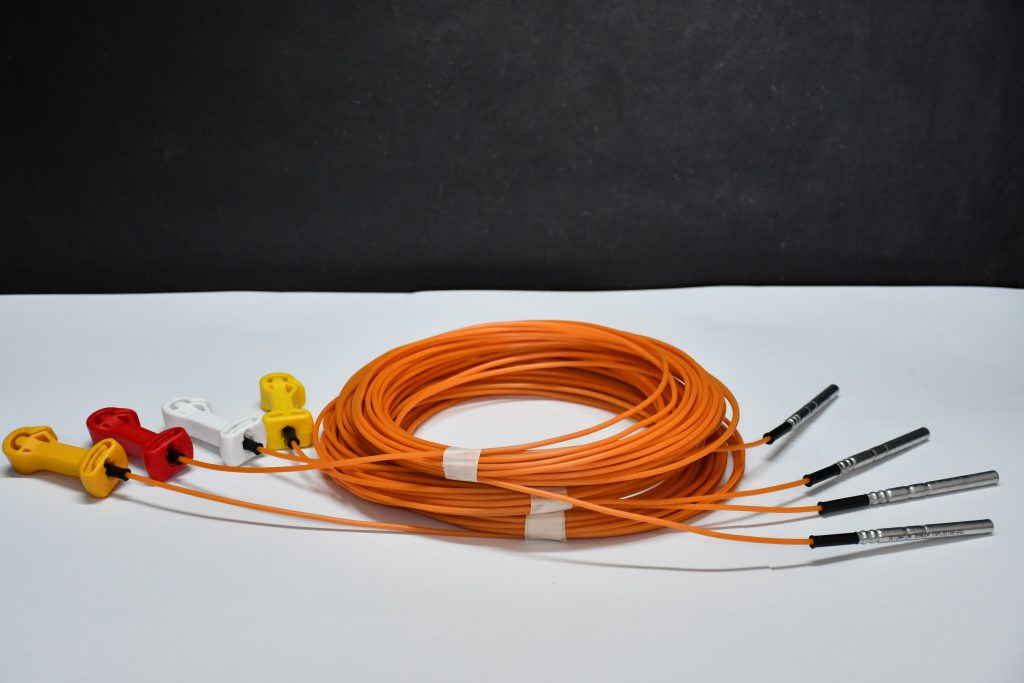

SUPREMEDET’S COMBIDET, SUPREMEDET STL, and SUPREMEDET DTH capsules are a dual-delay combined product resulting from the production of these capsules together. This combination allows for the storage of one product instead of two and facilitates easier inventory management. This product, which is extremely easy to use, is produced in various delay combinations and tube lengths according to the user’s preference. Due to fewer connections required, the connection of blast patterns with dual-delay capsules is faster. Visual inspections at the blasting site are easier. It is used as a hole-in capsule for all types of surface explosions (road construction, mining and quarries, dams, foundation excavations, etc.). It is not affected by water environments, harsh weather conditions, radio waves, or static electricity, providing a safer use. The delay of both capsules can be produced according to the needs as required.

Advantages

It is a highly secure ignition system, It never damages the column charge inside the hole or desensitizes the explosive, It is extremely easy to use, The tubes of the capsules can be produced according to the desired length, It provides flexibility in controlled delay and blasting control, It is safe against static electricity, It minimizes environmental problems caused by blasting, It is resistant to breaking and friction, It can be easily used in harsh environmental conditions, It is easy and quick to use,

Usage Recommendations

SUPREMEDET’S COMBIDET non-electric capsules can be fired with electric capsules, SUPREMEDET’S STL surface capsules, or a minimum of 5 gr/m detonating fuse. The connections should not be too tight or too loose. During filling and firing, the shock tube should be handled in a way that does not damage it. As there is explosive material in the capsule head, it can explode uncontrollably due to impact, friction, and high heat. One SUPREMEDET’S COMBIDET capsule should be used for each hole.

Technical Specifications

Housing Material	Aluminum
Shock Tube Material	3-Layered
Detonation Power	No:8
Delay Timing (ms)	450, 475, 500
VOD (km/s)	2.000 ± 100
Nominal Tension Strength	30 Kg
Water Resistance	Excellent
Operating Temperature Range	-30°C to +60°C
Shelf Life	2 Years

*Can be produced in the desired delay time according to customer request.

Storage

Explosive materials should be stored in accordance with the “Regulation on Explosives and Similar Articles Not Under the Monopoly, Regarding Hunting Materials” numbered 87/12028. For best results, store in a well-ventilated, approved explosive storage facility under moderate temperatures and dry conditions. If stored in a cool, dry, well-ventilated explosive storage, SUPREMEDET’S COMBIDET has a shelf life of 2 years from the production date. However, exposure to extreme hot or cold weather conditions may cause the product to deteriorate prematurely.

Shipping Information

Commercial Name: SUPREMEDET’S COMBIDET UN Number: 0360 / 0500* UN Class: 1.1B / 1.4S* Appropriate Shipment Name: NON-ELECTRIC CAPSULE DEVICES, For Blasting *Special packaging required

Disposal Method

The disposal of explosives is a dangerous operation and requires special training. The methods used for safe disposal may vary depending on the situation and conditions of the operations. For more information, please contact your local Solar representative.

Packaging

SUPREMEDET’S COMBIDET is packaged in UN-certified cardboard boxes, wrapped in anti-static polyethylene bags in coil form.

Shock Tube Length (m)	Quantity in One Bag (Pieces)	Quantity in One Box (Pieces)
6	10	200
8	10	160
10	10	120
12	10	100
15	5	100
18	5	70
21	5	60
24	4	48
30	3	42
